LE208A/LE208
Application:
>Medium & small size main reinforcement of sound system ;
>Touring performance ;
>Stadium ;
>Theater.
>Medium & small size main reinforcement of sound system ;
>Touring performance ;
>Stadium ;
>Theater.
(5)
-
Features
Necessary spares(Page20):
>Hanging line (2/ each string) ;
>Latch (6 /each one) ;
>Hanging top rack (1 /each string)
Optional Components(Page20-23):
>Electric hoist ;
>Rain-proof pack ;
>Flight case ;
>Hanging H line array rack.
-
Specification

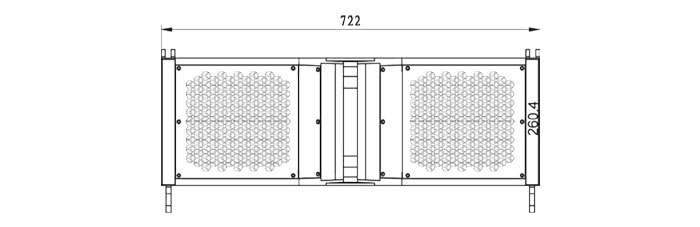

Model LE208A Model LE208 Type 2-way active line array element Type 2-way passive line array element Frequency response 65Hz~19kHz(-10dB) Frequency response 65Hz~19kHz(-10dB) 80Hz~18kHz(±3dB) 80Hz~18kHz(±3dB) Horizontal coverage (-6dB) 90° Horizontal coverage (-6dB) 90° Vertical coverage (-6dB) Depend on the size and the declining angle Vertical coverage (-6dB) Depend on the size and the declining angle LF 2x8” woofer / Φ50.8 voice coil LF 2x8”(203mm) / 2”voice coil HF 2×1.75" ( 44mm ) compression/ HF 2×1.75" ( 44mm ) compression driver Nd magnet Nd magnetic Amp power 500Wx2 Sensitivity LF unit: 96dB DSP Dream SAM 3716, HF unit: 108dB 24bit(data)x96bit(coeff) Nominal Impedance LF unit: 16Ω Voltage switching mode power supply (PFC) HF unit: 16Ω internal Voltage switching Power handling LF unit: 150Wx2 (continuous), 600WX2(peak) 85~265V, 50/60Hz HF unit: 40Wx2 (continuous), 160WX2(peak) Max SPL 127dB Max. SPL LF unit: 127dB Crossover 300Hz, 2kHz HF unit: 133dB Dimension (WxHxD) 722×260.4×440 (mm) Crossover 300Hz, 2KHz Weight 32kg Dimension (WxHxD) 722x260.4x440(mm) Vertical Spread Angle 0°~6° each step 1° Weight 30kg Vertical Spread Angle 0°~6° each step 1°
-
