LE206S/LE206SA
Application:
>Bass of sound reinforcement system;
>Medium & small size theater;
>Club and DISCO bass;
>Multi-function hall.
>Bass of sound reinforcement system;
>Medium & small size theater;
>Club and DISCO bass;
>Multi-function hall.
(5)
-
Features
Necessary spares(Page20):
>Hanging top rack;
>Latch(6 /each one);
Optional Components(Page20-23):
>Electric hoist ;
>Flight case;
>Suspension top frame. (LE206)
-
Specification

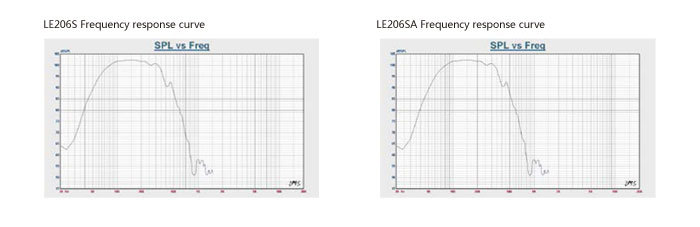

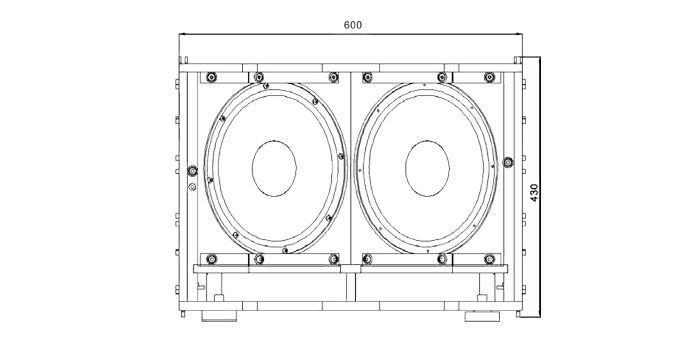

Model LE206S LE206SA Type Passive woofer Active woofer Frequency response(-10dB) 60Hz~700Hz 50Hz~600Hz Sensitivity 102dB 0dBu Power handling 600W (continuous), 2400W(peak) / Amp Power rated / 800W/4Ω(woofer)+400W/4Ωx2(HF/MF) Nominal Impedance 8Ωx2 / Crossover 300Hz 300Hz LF FB1207H (12")X2 FB1207H (12")X2 Max. SPL 136dB 136dB Dimension (WxHxD) 600x430x664(mm) 600x430x664(mm) Weight 55kg 57kg
-
