LE206-1/LE206
Application:
>Medium & small size main reinforcement of sound system;
>Touring performance;
>Stadium;
>Theatre.
>Medium & small size main reinforcement of sound system;
>Touring performance;
>Stadium;
>Theatre.
(5)
-
Features
Necessary spares(Page20):
>Hanging top rack;
>Latch(6 /each one);
Optional Components(Page20-23):
>Electric hoist ;
>Flight case;
>DB076speaker rack;(LE206)
>Hanging rack. (LE206)
>Suspension top frame. (LE206)
-
Specification

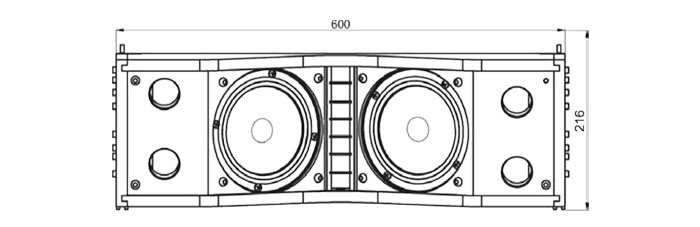

Model LE206-1 LE206 Type 2-way passive line array element 2-way passive line array element Frequency response(-10dB) 130Hz~20KHz 130Hz~20KHz Sensitivity 97dB 97dB Power handling 300W(continuous), 1200W(peak) 300W (continuous), 1200W(peak) Nominal Impedance 8Ω 4Ω Horizontal coverage (-6dB) 90° 90° Vertical coverage (-6dB) Depend on the size and the declining angle Depend on the size and the declining angle Crossover 200Hz, 2.0KHz 200Hz, 2.0KHz LF FF06505GX2 (6.5") FF06505HX2 (6.5") HF HF: 44mm(1.73")X1 compression driver H F: 44mm(1.73")X1 compression driver Max. SPL 128dB 128dB Dimension (WxHxD) 600x216x445(mm) 600x216x445(mm) Weight 20 kg 20 kg
-
