L212/L215
(5)
-
Features
> LF section adopts copper/aluminum voice coil, magnetic circuit with high efficiency of dissipation;
> HF section adopts accurate phase corrector, excellent Titanium diaphragm;
> Switching between LC crossover and external crossover can meet demanding mixing requirement. HF protection circuit makes distortion low;

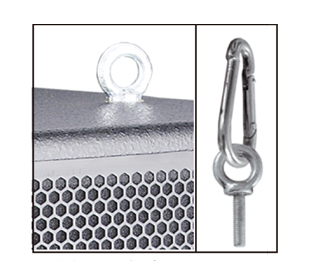

> Five aluminum bars for easy hanging;
> Tray with two holes for easy and quick set up.
-
Specification
Model L212 L215 Type 2X12”two way full range cabinet 2X15”two way full range cabinet Frequency response 50Hz~20kHz(-10dB) 43Hz~20kHz(-10dB) 55Hz~18kHz(±3dB) 48Hz~18kHz(±3dB) Sensitivity(1W@1m) 99dB 99dB Nominal Impedance 4Ω 4Ω Power handling 600W (continuous), 2400W (peak) 1000W (continuous), 4000W (peak) Crossover 1.4kHz 1.4kHz LF 2X12”MF/LF / 75mm Voice coil 2X15”MF/LF / 100mm Voice coil HF Ti/PK Diaphragm / 75mm Ti/PK diaphragm / 75mm Voice coil / neodymium magnet Voice coil / neodymium magnet Coverage(HxV) 80°X60° 80°X60° Max. SPL 133dB 135dB Dimension(WxHxD) 428x920x426(mm) 494x478x1090(mm) Weight 58.5kg 61kg
-
