L18S
(5)
-
Features
> LF section adopts copper/aluminum voice coil, magnetic circuit with high efficiency of dissipation;
> HF section adopts accurate phase corrector, excellent Titanium diaphragm;
> Switching between LC crossover and external crossover can meet demanding mixing requirement. HF protection circuit makes distortion low;

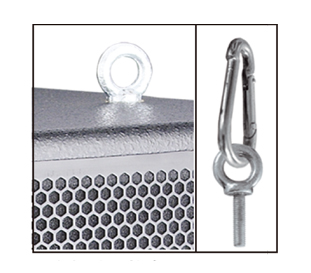

> Five aluminum bars for easy hanging;
> Tray with two holes for easy and quick set up.
-
Specification
Model L18S Type 18”woofer Frequency response 33Hz~150Hz (-10dB) 40Hz~125Hz (±3dB) Sensitivity(1W@1m) 98dB Nominal Impedance 8Ω Power handling 700W (continuous), 2800W (peak) Crossover 150Hz LF 18" / 100mm Voice coil Max. SPL 134dB Dimension(WxHxD) 556x650x653 (mm) Weight 46kg
-
