L10/L12/L15
(5)
-
Features
> LF section adopts copper/aluminum voice coil, magnetic circuit with high efficiency of dissipation;
> HF section adopts accurate phase corrector, excellent Titanium diaphragm;
> Switching between LC crossover and external crossover can meet demanding mixing requirement. HF protection circuit makes distortion low;

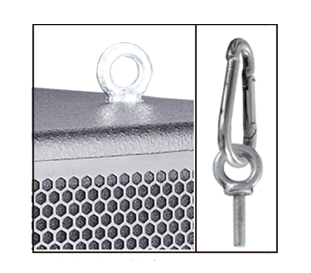

> Five aluminum bars for easy hanging;
> Tray with two holes for easy and quick set up.
-
Specification
Model L10 L12 L15 Type 10”two way full range cabinet 12”two way full range cabinet 15”two way full range cabinet Frequency response 55Hz~20kHz (-10dB) 50Hz~20kHz(-10dB) 43Hz~20kHz(-10dB) 60Hz~18kHz (±3dB) 55Hz~18kHz(±3dB) 48Hz~18kHz(±3dB) Sensitivity(1W@1m) 94 dB 94 dB 97 dB Nominal Impedance 8Ω 8Ω 8Ω Power handling 250W (continuous), 1000W (peak) 500W (continuous), 2000W (peak) 600W (continuous), 2400W (peak) Crossover 2kHz 1.4kHz 1.5kHz LF 10" MF/LF / 65mm Voice coil 12" MF/LF / 100mm Voice coil 15" MF/LF / 100mm Voice coil HF PK Diaphragm / 34mm Voice coil Ti/PEN Daphragm / 75mm Voice coil Ti/PEN Daphragm / 75mm Voice coil Coverage(HxV) 90°x40° 80°x60° 80°x60° Max. SPL 124dB 128dB 131dB Dimension(WxHxD) 310x530x290 (mm) 380x660x367.5(mm) 430x760x418.6(mm) Weight 22kg 34kg 41kg
-
