KV15
(5)
-
Features
> Compact, light weight;
> Class D power ampliier, reliable performance delicate tone;
> Nd magnet LF unit(passive) and HF compression design;
> Constant directivity horn, coverage 80°x60°;
> Also used for 45°stage monitoring;
> Black durable inish;
> Full range speaker cabinet with 13 lying points and pole socket for various installation.
-
Specification

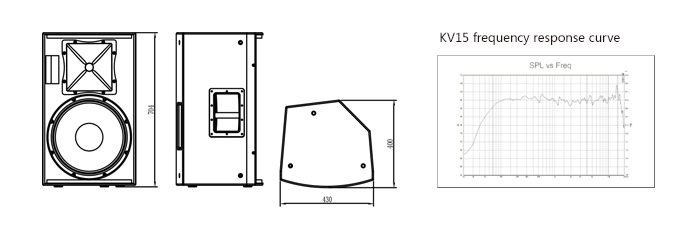

Model KV15 Type 15 inch two ways Frequency response 45Hz –20kHz (-10dB) 55Hz –18kHz (-3dB) Sensitivity(1W@1m) 96 dB Nominal Impedance 4Ω Power Continue 400w Peak 1600W Crossover 2kHz LF 15" woofer / Φ73.5mm voice coil HF compression driver / Φ44mm voice coil Coverage (H x V) 80°x60° Max SPL 128dB Connector 2xspeakon NL4 Dimension (W x H xD) 430x704x400(mm) Weight net/shipping 21kg / 25kg
-
