KT315A
(5)
-
Features
> Unique shape, compact, light-weighted; durable silver environmental friendly paint;
> Solid plywood with slot-tongue structure cabinet to deliver robust tone;
> Dual coaxial driver MF/HF unit to offer optimal coverage and to improve sound clearness and resolution;
> Efficient Class D power amplifier with 1500W load capacity, stable performance, low distortion;
> Φ35mm tray for stand installation;
> KT series has DSP function to process EQ/X-OVER/LIMIT/DELAY/volume, etc. The panel operation can be replaced by PC operation via
-
Specification

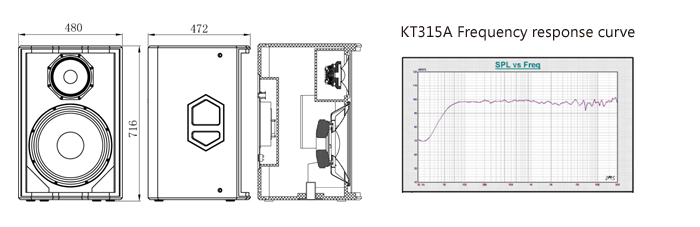

Model KT315A Type Active Coaxial Loudspeake Frequency response 50Hz~20kHz (±3dB) Input Sensitivity 0dBu Max SPL(@1m) 137dB (peak) Amp. power 1500W Coverage(HxV) 60°x60° Crossover (LM/MH) 300Hz(Active)
3.0kHz(Passive) Input Connector JACK/XLR Supporting system Φ35 Dimension (WxHxD) 480x716x472(mm) Weight 33.6kg
-
