KT312A
(5)
-
Features
> Unique shape, compact, light-weighted; durable silver environmental friendly paint;
> Solid plywood with slot-tongue structure cabinet to deliver robust tone;
> Dual coaxial driver MF/HF unit to offer optimal coverage and to improve sound clearness and resolution;
> Efficient Class D power amplifier with 1500W load capacity, stable performance, low distortion;
> Φ35mm tray for stand installation;
> KT series has DSP function to process EQ/X-OVER/LIMIT/DELAY/volume, etc. The panel operation can be replaced by PC operation via
-
Specification
Model KT312A Type Active Coaxial Loudspeaker Frequency response 58Hz~18kHz(±3dB) Input Sensitivity 0dBu Max SPL(@1m) 136dB(peak) Amp. power 1500W Coverage(HxV) 60°x60° Crossover (LM/MH) 300Hz(Active)

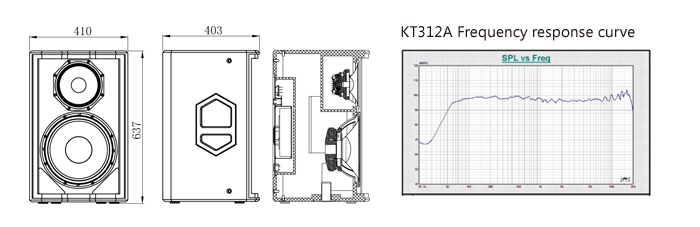

2.0kHz(Passive) Input Connector RCA/XLR Input Voltage 230V Supporting system Φ35 Dimension (WxHxD) 410x637x403(mm) Weight 27.5kg
-
