KT12MA
KT Stage Monitoring Loudspeaker Series
The stage monitoring series consists of active and passive types. Angles 38°/42°/45°/48°/52° are offered for option. The series is the best choice for stage show and near field reinforcement.
The stage monitoring series consists of active and passive types. Angles 38°/42°/45°/48°/52° are offered for option. The series is the best choice for stage show and near field reinforcement.
(5)
-
Features

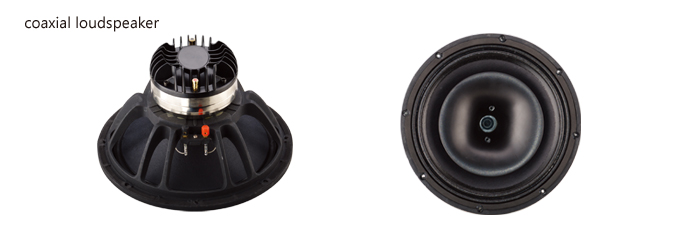

> HF/LF units adopts Nd magnet coaxial design. The strong magnet flux density to improve voice coil efficiency and sensitivity, ensure reproducing original sound and lower distortion;
> HF compression driver with Ti/PK compound diaphragm and 75mm voice coil to ensure sound transparency and clear;
> Dual class D power amplifier offers sufficient headroom. The switching power supply provides wide dynamic and sound purity. Thermal/power surge/over load/short circuit protection;
> Passive LC crossover; PTC protection of HF; high quality components to reproduce original sound;
> Unique and novel sha pe; handles f or convenient transportation;
> 45°/20° monitoring angle of the enclosure;
> Water-proof painting finish; steel grille for protection;
-
Specification
Model KT12MA Type Two way active monitoring loudspeaker Frequency response 55Hz -20kHz(±3dB) Input sensitivity 0dBu Amp power rated 350W (LF)+100W (HF) Crossover 1.2KHz LF 12” LF/75mm voice coil / Nd magnet HF 75 compression driver /1.5” exit / Nd magnet Coverage (HxV) 80°×80° Max SPL 128dB Connector JACK/XLR Dimension (WxHxD) 468x430x442(mm) Weight 20kg -
