KT12M
KT Stage Monitoring Loudspeaker Series
The stage monitoring series consists of active and passive types. Angles 38°/42°/45°/48°/52° are offered for option. The series is the best choice for stage show and near field reinforcement.
The stage monitoring series consists of active and passive types. Angles 38°/42°/45°/48°/52° are offered for option. The series is the best choice for stage show and near field reinforcement.
(5)
-
Features

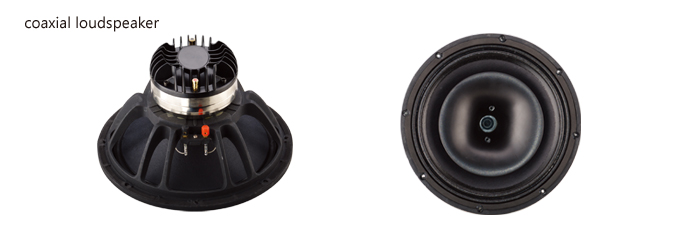

> HF/LF units adopts Nd magnet coaxial design. The strong magnet flux density to improve voice coil efficiency and sensitivity, ensure reproducing original sound and lower distortion;
> HF compression driver with Ti/PK compound diaphragm and 75mm voice coil to ensure sound transparency and clear;
> Dual class D power amplifier offers sufficient headroom. The switching power supply provides wide dynamic and sound purity. Thermal/power surge/over load/short circuit protection;
> Passive LC crossover; PTC protection of HF; high quality components to reproduce original sound;
> Unique and novel sha pe; handles f or convenient transportation;
> 45°/20° monitoring angle of the enclosure;
> Water-proof painting finish; steel grille for protection;
-
Specification
Model KT12M Type Two way passive monitoring loudspeaker Frequency response 55Hz -20kHz(±3dB) Sensitivity(1W@1m) 96dB Nominal Impedance 8Ω Power handling 300W( continuous), 1200W (peak) Crossover 1.2kHz LF 12” LF/75mm voice coil/Nd magnet HF 75mm compression driver/1.5” exit/ Nd magnet Coverage (HxV) 80°×80° Max SPL 127dB Connector 4×Speakon Dimension (WxHxD) 468x430x442(mm) Weight 17.5kg
-
