JHCDC4-Y
Dimension(L*W*H):
862*609*1185mm
862*609*1185mm
(5)
-
Features

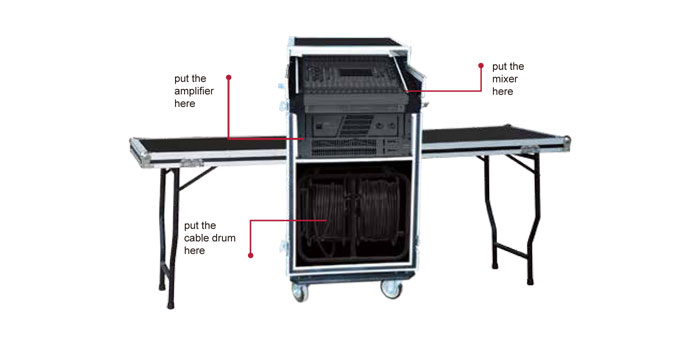

◎ JHCDC4-Y can be used for mixer, power amplifier, cable drum. (the cable drums from BCD401 ~ BCD406 can be chosen.
◎ 9mm HDF and high strength Al corner;
◎ Four 4 inch wheels, DuPont PU; Steel rivet;
◎ High quality metal corner/handle/lock from Penn Elcom.
Innovative Feature:
JHCDC4-Y door can be opened as a desk.
-
Specification
JHCDC-Y Specification Packing Size
L*W*H(mm)illustrations Chassis connector Cable connector Cable Length(max) A BCD401 4 XLR(F)+(1*NAC3MPA+1*NAC3MPB) Neutrik 4XLR(M)+1*NAC3FCA Neutrik 4CH Mic cable+3*2.5mm2 Power cord 570*660*600
50m 50m B BCD402 8 XLR(F)+(1*NAC3MPA+1*NAC3MPB) Neutrik 8XLR(M)+1*NAC3FCA Neutrik 8CH Mic cable+3*2.5mm2 Power cord 570*660*600 30m 50m C BCD403 4 XLR(F)+4 XLR(M)+(1*NAC3MPA+
1*NAC3MPB) Neutrik4XLR(M)+1*NAC3FCA Neutrik 4CH Mic cable+3*2.5mm2 Power cord 570*660*600 50m 50m D BCD404 RJ45 NE8FDV-Y110 Neutrik+(1*NAC3MPA+
1*NAC3MPB) NeutrikNE8MC-1 Neutrik+
1*NAC3FCA NeutrikCAT6-UTP cable+3*2.5mm2 Power cord 570*660*600
100m 50m E BCD405 2*75Ω BNC Female Neutrik+(1*NAC3MPA+
1*NAC3MPB) Neutrik2*75Ω BNC Male Neutrik+
1*NAC3FCA Neutrik2CH 75 Ω Coaxial cable+3*2.5mm2 Power cord 570*660*600
50m 50m F BCD406 VGA Female+(1*NAC3MPA+
1*NAC3MPB) NeutrikVGA Male+1*NAC3FCA Neutrik VGA Video cable+3*2.5mm2 Power cord 570*660*600
30m 50m
-
