FHE12M / FHE12MA / FHE15M / FHE15MA
Instruction:
This series is specially designed for stage monitor facilitate optimum of stage performances with 45 ° and 20 ° angle optional. High performance tweeters and woofers with big power and excellent tone. Active cabinets are equipped with H/M/L 3 band equalizer to adjust tone. Amp achieves excellent performance, low distortion, and delicate tone. The protection includes thermal protection, over-current protection, short circuit protection,automatic compression while over load, which ensure the stability of cabinets.
This series is specially designed for stage monitor facilitate optimum of stage performances with 45 ° and 20 ° angle optional. High performance tweeters and woofers with big power and excellent tone. Active cabinets are equipped with H/M/L 3 band equalizer to adjust tone. Amp achieves excellent performance, low distortion, and delicate tone. The protection includes thermal protection, over-current protection, short circuit protection,automatic compression while over load, which ensure the stability of cabinets.
(5)
-
Features
> Elegant appearance, wearable, solid, water-proof wooden box.
> High performance tweeter and woofer, big power, excellent tone.
> Twelve M10 flying points make hanging convenient.
-
Specification
Model FHE12MA FHE15MA Type 12" Active Stage Monitor 15" Active Stage Monitor Frequency response 55Hz--20kHz(-10dB) 50Hz--20kHz(-10dB) LF 12"LF/75mm voice coil 15"LF/75mm voice coil HF 44mm voice coil 44mm voice coil Input Sensitivity 0dBu 0dBu Max.SPL 129dB 131dB Amp power rated 300W (LF)+80W (HF) 400W (LF)+80W (HF) Coverage(HxV) 90°x40° 90°x40° Crossover 2.0KHz 2.0KHz Input connectors JACK/XLR JACK/XLR Power supply 230V/115V 230V/115V Dimensions (WxHxD) 604x360x335 (mm) 696x415x386 (mm) Net weight 29Kg 33Kg

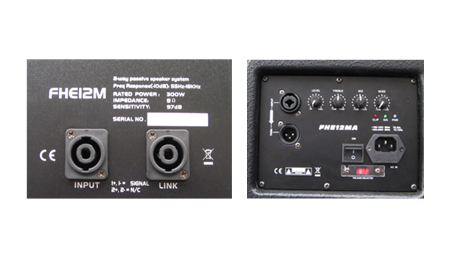

Model FHE12M FHE15M Type 12" 2 way Passive Stage Monitor 15" 2 way Passive Stage Monitor Frequency response 55Hz--20kHz (-10dB); 50Hz--20kHz (-10dB) 60Hz--18kHz (±3dB) 55Hz--18kHz( ±3dB) Sensitivity (1W@1m) 97dB 98dB Nominal Impedance 8Ω 8Ω Power handling 300W (continuous); 1200 (peak) 400W (continuous); 1600 (peak) Crossover 2.2kHz 2.2kHz LF 12" MF/LF /75mm Voice Coil /300W 15" MF/LF /75mm Voice Coil /350W HF 44 mm Compression Driver/1" Throat /40W 44mm Compression Driver/1" Throat/40W Coverage(HxV) 90°x40° 90°x40° Max.SPL 125dB 127dB Input Connector 2×SPEAKON 2×SPEAKON Suspension system 12 M10 flying points 12 M10 flying points Dimensions (WxHxD) 405x989x445 (mm) 405x989x445 (mm) Weight 22kg 29kg
-
