FC615T
(5)
-
Features
> External 3-way Speaker System.
> It consists of one φ100 mm voice coil Nd magnetic HF driver, two φ75 mm. voice coil MF and four φ100 mm voice coil woofers.
> High sensitivity, high power and small distortion.
> MF/HF can be adjusted up and down.
> Suitable for the reinforcement of large cinema.
-
Specification

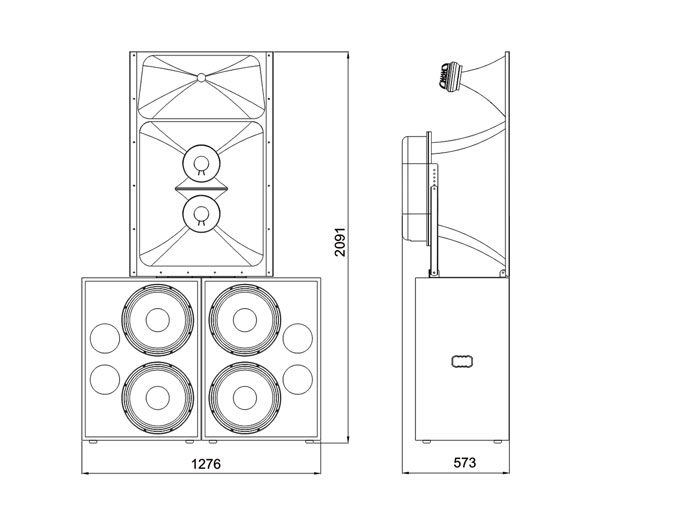

Model FC615T Type External 3way Speaker System Freq Response 35Hz-20KHz(±3dB) Impedance LF2x4Ω/MF4Ω/HF8Ω Power LF3200W /MF600W / HF120W Sensitivity(1W@1m) LF103dB /MF101dB / HF110dB Max.SPL LF138dB/MF135dB/HF137dB Coverage 90°x 50°(H×V) Crossover 250Hz/1.2K Hz Speaker unit 15" x4+10" x2+4" x1 Dimension(W×H×D) 1276x2091x573mm Weight 162Kg
-
