FC515T
(5)
-
Features
> 3-way external crossover.
> 4×15" low-frequency system with high sensitivity, high power and small distortion.
> It consists of one φ100 mm voice coil HF horn, oneφ100 mm voice coil MF horn and four φ100 mm voice coil woofers.
> Excellent directivity and tone.
> Suitable for the reinforcement of large luxury cinema.
-
Specification

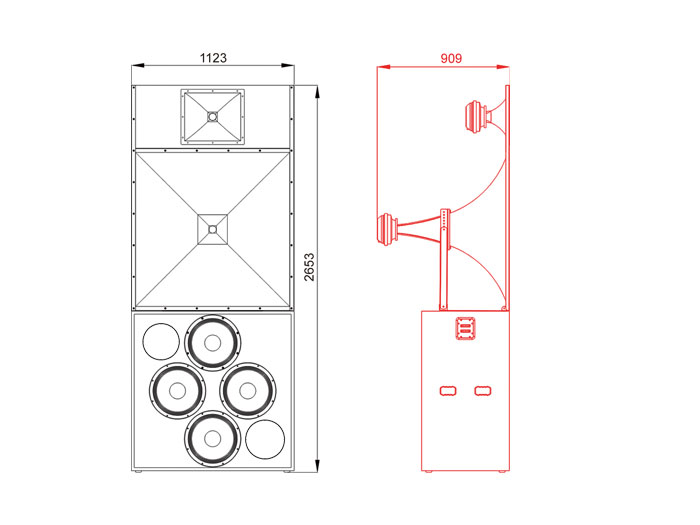

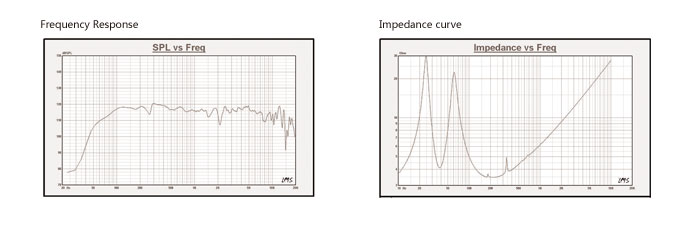

Model FC515T Type External 3way Speaker System Freq Response 35Hz～18KHz(±3dB) Impedance LF2x4Ω/MF8Ω/HF8Ω Power LF2000W/MF120W/HF120W Sensitivity(1W@1m) LF104/MF110/HF110dB Max.SPL LF143dB/MF137dB/HF137dB Coverage 90°x50°(H×V) Crossover 600Hz/2.4KHz Speaker unit 15" x4+4" x1+4" x1 Dimension(W×H×D) 1123x2653x909mm Weight 204kg
-
