FC515
(5)
-
Features
> 3-way external crossover.
> 15" low-frequency system with high sensitivity, high power and small distortion.
> It consists of one φ75 mm voice coil HF horn, oneφ100 mm voice coil MF horn and φ100 mm voice coil woofers.
> Excellent directivity and tone.
> Suitable for the reinforcement of small-sized luxury cinema.
-
Specification

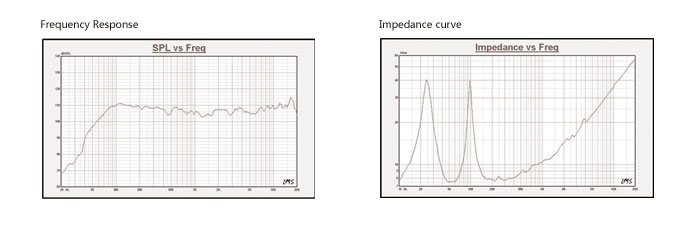

Model FC515 Type External 3way Speaker System Freq Response 40Hz-18KHz(±3dB) Impedance LF8Ω/MF8Ω/HF8Ω Power LF500W/MF120W/HF80W Sensitivity(1W@1m) LF98dB /MF110dB / HF110dB Max.SPL LF131dB/MF137dB/HF135dB Coverage 90°x50°(HxV) Crossover 350Hz/1.4KHz Speaker unit 15" x1+4" x1+3" x1 Dimension(W×H×D) 790x1264x813mm Weight 78kg
-
