FC415S
(5)
-
Features
> 2-way biamplified cinema loudspeaker system requires an external crossover.
> HF section is a constant directivity horn loaded to a 2" throat compression driver equipped with Φ100mm voice coil. The low frequency is two 15" woofers with Φ100mm voice coil.
> High SPL, high sound resolution, high dynamic range.
> Designed for medium cinema environments.
-
Specification

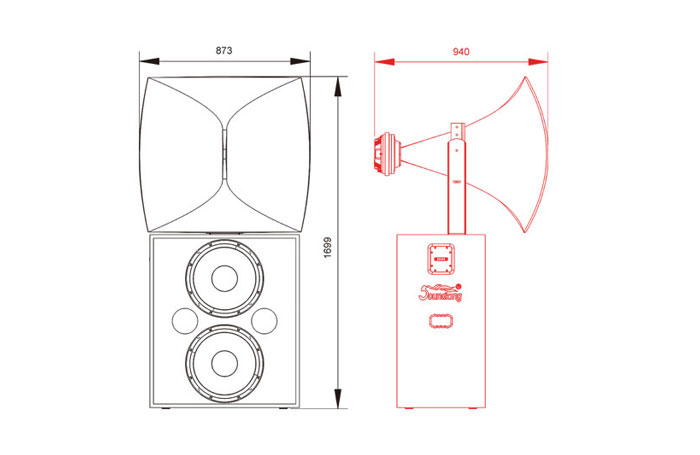

Model FC415S Type External 2way Speaker System Freq Response 35Hz～18KHz(±3dB) Impedance LF4Ω/HF8Ω Power LF1000W/HF120W Sensitivity(1W@1m) LF101dB/HF110dB Max.SPL LF137dB/HF137dB Coverage 90°x40°(HxV) Crossover 600Hz Speaker unit 15" x2+4" x1 Dimension(W×H×D) 873x1699x940(mm) Weight 95kg
-
