FC315AE
(5)
-
Features
> 3-way Speaker System.
> It consists of one φ75 mm voice coil Nd magnetic HF driver, two φ50 mm voice coil MF and two15" woofers withφ75 mm voice coil .
> High sensitivity, high power and small distortion.
> Suitable for the reinforcement of medium cinema.
-
Specification

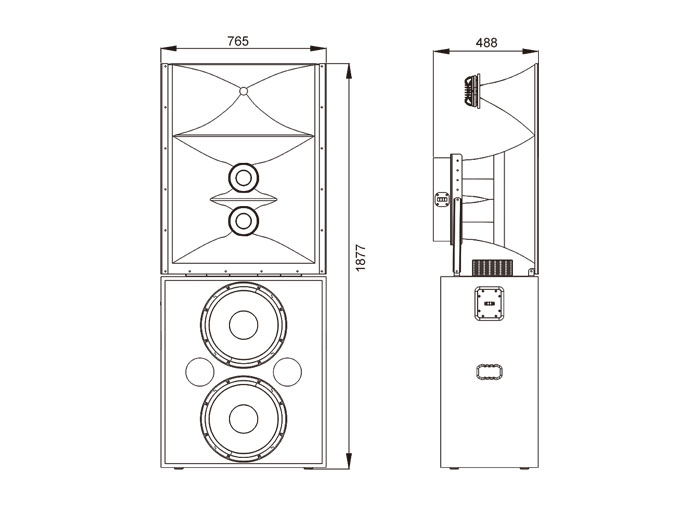

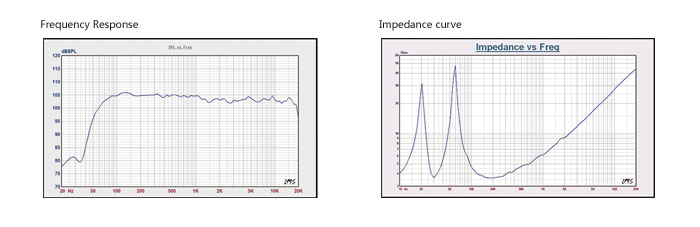

Model FC315AE Type 3way 2 driver Speaker System Freq Response 35Hz-20KHz(±3dB) Impedance LF4Ω/M-HF8Ω Power LF800W/M-HF300W Sensitivity(1W@1m) LF102dB/M-HF105dB Max.SPL LF137dB/M-HF137dB Coverage 80°X45°(H×V) Crossover 350Hz Speaker unit 15" ×2+6.5" ×2+3" ×1 Dimension(W×H×D) 765×1877×488(mm) Weight 98Kg
-
