FC315/FC315A
(5)
-
Features
> 3-way cinema loudspeaker system, FC315A features built-in crossover, FC315 requires an external crossover.
> 1.5" throat neodymium compression driver equipped with a Φ75 mm voice coil, two 6.5" midrange speakers with Φ50 mm voice coil and two 15" woofers with Φ100 mm voice coil.
> High sensitivity, optimum directivity, full and punchy sound.
> Designed for medium cinema environments.
-
Specification

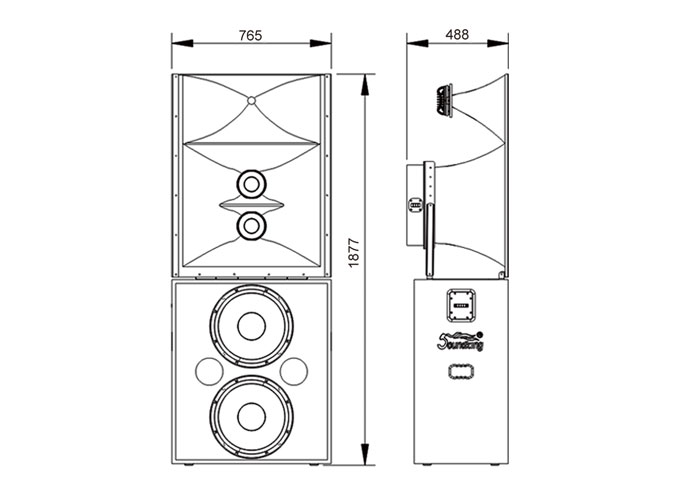

Model FC315 FC315A Type External 3way Speaker System 3way 2 driver Speaker System Freq Response 35Hz-20KHz(±3dB) 35Hz-20KHz(±3dB) Impedance LF4Ω/MF8Ω/HF8Ω LF4Ω/M-HF8Ω Power LF1000W/MF300W/HF80W LF1000W/M-HF380W Sensitivity(1W@1m) LF101 dB /MF105 dB /HF110dB LF101 dB /M-HF105 dB Max.SPL LF137dB /MF136 dB /HF135 dB LF137dB /M-HF137dB Coverage 80°× 45°(H×V) 80°× 45°(H×V) Crossover 350Hz /1.2kHz 350Hz /1.2kHz Speaker unit 15" ×2 + 6.5" ×2+3" ×1 15" ×2 + 6.5" ×2+3" ×1 Dimension(W×H×D) 765×1877×488(mm) 765×1877×488(mm) Weight 95.5 kg 97 kg
-
