FC415L/FC415AL
(5)
-
Features
> 2-way cinema loudspeaker system, FC415L features built-in crossover, FC415AL requires an external crossover.
> It consists of one φ75 mm voice coil HF driver and two φ75mm voice coil woofers.
> High sensitivity, optimum directivity, high power, low distortion, true sound.
> Designed for small and medium cinema environments.
-
Specification

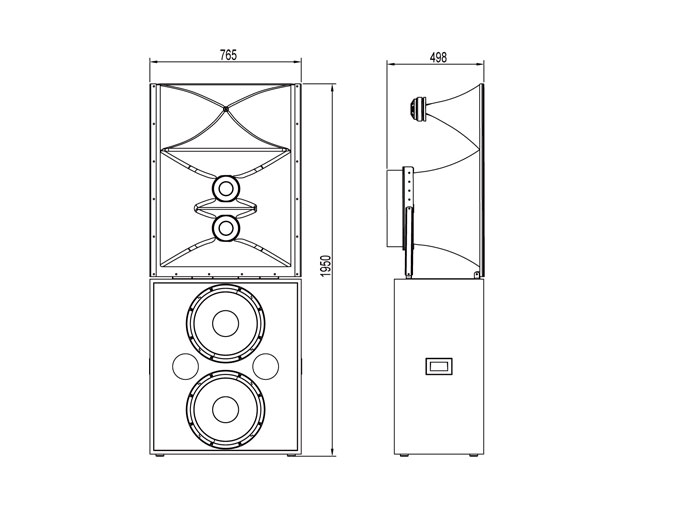

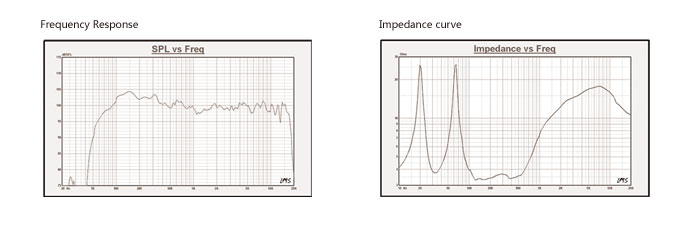

Model FC415AL FC415L Type Internal 2way Passive Speaker System External 2way Speaker System Freq Response 35Hz～20kHz(±3dB) 35Hz～20kHz(±3dB) Impedance 4Ω LF4Ω/HF8Ω Power 900W LF800W/HF80W Sensitivity(1W@1m) 101dB LF101dB/HF112dB Max.SPL 137dB LF136dB/HF137dB Coverage 80°x40°(HxV) 80°x40°(HxV) Crossover 800Hz(Passive) 800Hz(Active) Speaker unit 15" x2+3" x1 15" x2+3" x1 Dimension(W×H×D) 764x1268x450(mm) 764x1268x450(mm) Weight 73kg 74.5kg
-
