FC315L
(5)
-
Features
> 3-way cinema loudspeaker system.
> 1" throat compression driver equipped with a φ44mm voice coil, two 6.5”midrange speakers with φ38mm voice coil and two 15" woofers with φ75mm voice coil.
> High sensitivity, optimum directivity, full and punchy sound.
> Designed for medium cinema environments. -
Specification

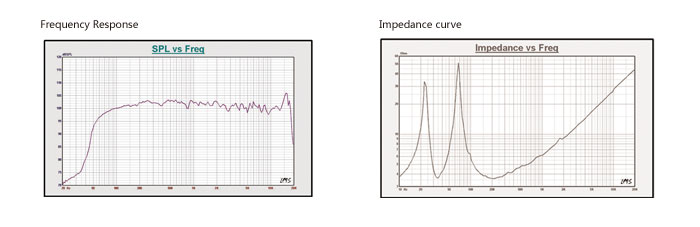

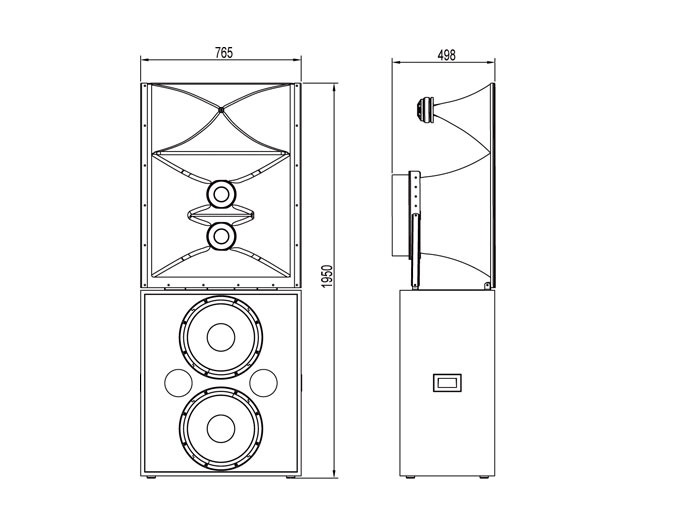

Model FC315L Type External 3way Speaker System Freq Response 35Hz-20kHz(±3dB) Impedance LF4Ω/MF8Ω/HF8Ω Power LF800W/MF260W/HF80W Sensitivity(1W@1m) LF101dB/MF105dB/HF110dB Max.SPL LF136dB/MF135dB/HF132dB Coverage 80°×45°(HxV) Crossover 350Hz /1.2kHz Speaker unit 15" ×2 + 6.5" ×2+1.75" ×1 Dimension(W×H×D) 765×1950×498(mm) Weight 97 kg
-
