FC3215 Ⅰ/FC3215A Ⅰ
(5)
-
Features
> 3 way 3 driver/3 way 2 driver dual 15" full range cinema speaker cabinet ( flat panel, only 290mm thick)
> Consists of two 65mm 15" LF unit, one 38mm 6.5" MF unit and one 44mm 1" throat compression HF unit.
> MFHF horn can rotate up and down, left and right.
> High power, low distortion, high performance low cost.
> Suitable for the reinforcement after screen in small but long cinema.
-
Specification

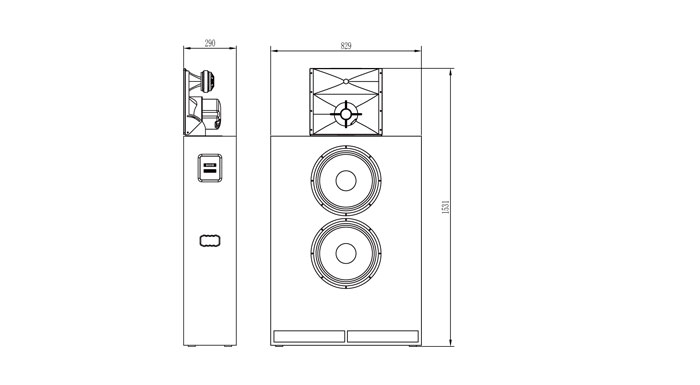

Model FC3215Ⅰ FC3215AⅠ Type Dual 15" 3 way full range cinema speaker cabinet Dual 15" 3way 2 driver full range cinema speaker cabinet Freq Response 32Hz –18kHz(±3dB) 32Hz –18kHz(±3dB) Impedance LF4Ω/MF8Ω/8Ω LF4Ω/M-HF8Ω Power LF500W/MF100W/HF40W LF500W/M-HF140W Sensitivity(1W@1m) LF101dB/MF100dB/HF106dB LF101dB/M-HF101dB MAX SPL. LF134dB/MF126dB/HF128dB LF134dB/M-HF128dB Coverage 90°× 45°(HxV) 90°× 45°(HxV) Crossover 300Hz(Active),2kHz(Active) 300Hz(Active),2kHz (Active) Speaker unit 15" ×2 + 6.5" ×1+1.75" ×1 15" ×2 + 6.5" ×1+1.75" ×1 Dimension(W×H×D) 829×1531×290(mm) 829×1531×290(mm) Weight 62.5kg 64kg
-
