FC3212 Ⅰ/FC3212A Ⅰ
(5)
-
Features
> 3 way 3 driver/3 way 2 driver dual 12" full range cinema speaker cabinet ( flat panel, only 260mm thick).
> Consists of two 65mm 12" LF unit, one 38mm 6.5" MF unit and one 44mm 1" throat compression HF unit.
> MF/HF horn can rotate up and down, left and right.
> High power, low distortion, high performance low cost.
> Suitable for the reinforcement after screen in small but long cinema.
-
Specification

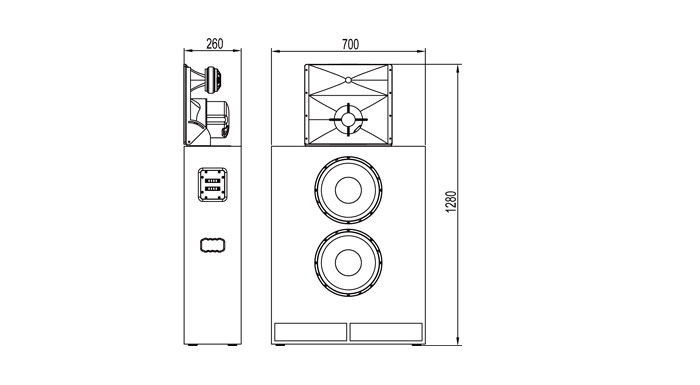

Model FC3212Ⅰ FC3212AⅠ Type Dual 12" 3way full range cinema speaker cabinet Dual 12" 3way 2 driver full range cinema speaker cabinet Freq Response 35Hz –18kHz(±3dB) 35Hz –18kHz(±3dB) Impedance LF4Ω/MF8Ω/HF8Ω LF4Ω/M-HF8Ω Power LF500W/MF100W/HF40W LF500W/M-HF160W Sensitivity(1W@1m) LF99dB/MF100dB/HF106dB LF99dB/M-HF101dB Max SPL LF132dB/MF126dB/HF128dB LF132dB/M-HF128dB Coverage 90°× 45°(HxV) 90°× 45°(HxV) Crossover 300Hz(Active),2kHz(Active) 300Hz(Active),2kHz(Passive) Speaker unit 12" ×2 + 6.5" ×1+1.75" ×1 12" ×2 + 6.5" ×1+1.75" ×1 Dimension(WxHxD) 700×1280×260(mm) 700×1280×260(mm) Weight 55.5kg 57kg
-
