FC515 Ⅱ/FC515A Ⅱ
(5)
-
Features
> 3-way external crossover.
> 15" low-frequency system with high sensitivity, high power and small distortion.
> It consists of one φ75 mm voice coil HF horn, oneφ100 mm voice coil MF horn and φ75 mm voice coil woofers.
> Excellent directivity and tone.
> Suitable for the reinforcement of middle-sized luxury cinema.
-
Specification

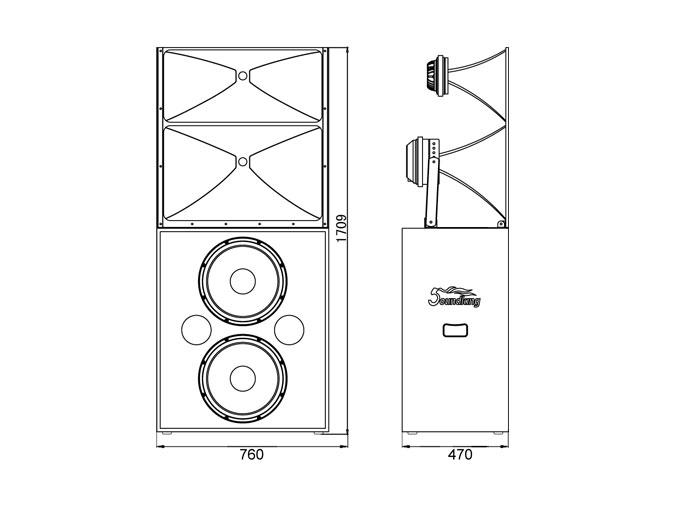

Model FC515Ⅱ FC515AⅡ Type 3way 3 driver Speaker System 3way 2 driver Speaker System Freq Response 32Hz -20kHz(±3dB) 32Hz -20kHz(±3dB) Impedance LF4Ω/MF8Ω/HF8Ω LF4Ω/M-HF8Ω Power LF800W/MF100W/HF80W LF800W/M-HF180W Sensitivity(1W@1m) LF101dB/MF113dB/HF106dB LF101dB/M-HF110dB Max.SPL LF136dB/MF139dB/HF131dB LF136dB/M-HF135dB Coverage 90° ×50°(HxV) 90 °×50°(HxV) Crossover 500 Hz(Active)/2.3kHz(Active) 500 Hz(Active)/2.3kHz(Passive) Speaker unit 15" ×2+4" ×1+3" ×1 15" ×2+4" ×1+3" ×1 Dimension(W×H×D) 760×1709×470(mm) 760×1709×470(mm) Weight 81kg 82kg
-
