FC415 Ⅱ/FC415A Ⅱ
(5)
-
Features
> 2-way biamplified cinema loudspeaker system.
> 1.5" throat neodymium compression driver equipped with a φ75mm voice coil, and two 15" woofers with φ75mm voice coil.
> High sensitivity, optimum directivity, high power, low distortion, true sound.
> Designed for small and medium cinema environments.
-
Specification

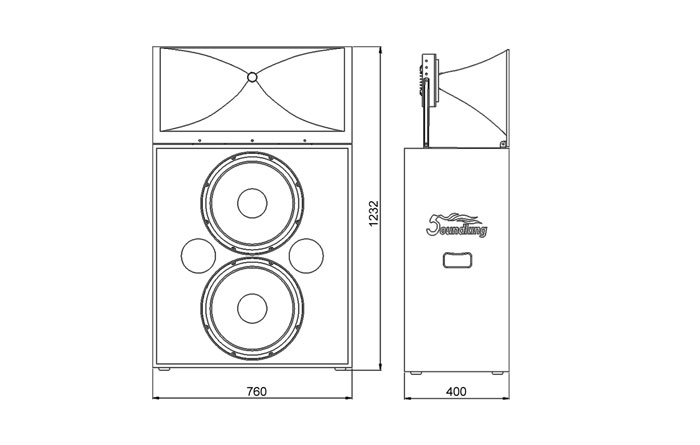

Model FC415Ⅱ FC415AⅡ Type 2way 2 driver Speaker System Internal 2way Speaker System Freq Response 32Hz～20KHz(±3dB) 35Hz～20KHz(±3dB) Impedance 4Ω/8Ω 4Ω(4Ω/8Ω) Power LF800W/HF80W 800W Sensitivity(1W@1m) 101dB/106dB 102dB(102dB/110dB) Max.SPL 136dB/131dB 137dB Coverage 80°x40°(HxV) 80°x40°(HxV) Crossover 800Hz 800Hz Speaker unit 15" x2+3" x1 15" x2+3" x1 Dimension(W×H×D) 760x1232x400(mm) 760x1232x400(mm) Weight 64kg 65kg
-
