FC315 Ⅱ/FC315A Ⅱ
(5)
-
Features
> 3-way cinema loudspeaker system.
> 1" throat neodymium compression driver equipped with a φ44mm voice coil,, two 6.5" midrange speakers with φ38 mm voice coil and two 15" woofers with φ75 mm voice coil.
> High sensitivity, optimum directivity, full and punchy sound.
> Designed for medium cinema environments.
-
Specification

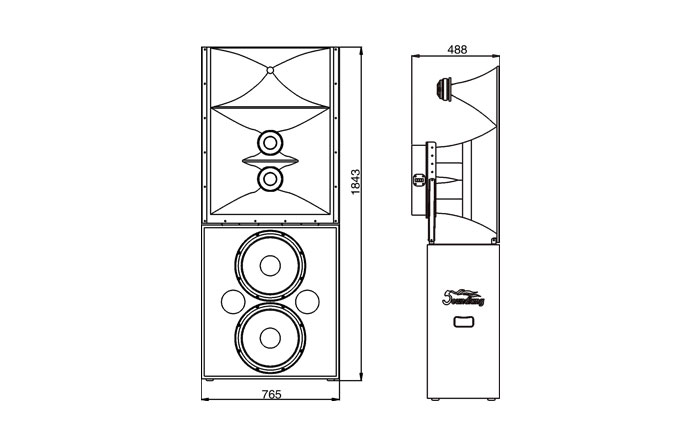

Model FC315Ⅱ FC315AⅡ Type 3way 3 driver Speaker System 3way 2 driver Speaker System Freq Response 32Hz -20kHz(±3dB) 32Hz -20kHz(±3dB) Impedance LF4Ω/MF8Ω/HF8Ω LF4Ω/M-HF8Ω Power LF800W/MF260W/HF40W LF800W/M-HF300W Sensitivity(1W@1m) LF101dB/MF105dB/HF110dB LF101dB/M-HF105dB Max.SPL LF136dB/MF135dB/HF132dB LF136dB/M-HF135dB Coverage 80°x 45°(H×V) 80°x45°(H×V) Crossover 400Hz(Active)/2.3kHz(Active) 400Hz(Active)/2.3kHz(Passive) Speaker unit 15" ×2+6.5" ×2+1.75" ×1 15" ×2+6.5" ×2+1.75" ×1 Dimension(W×H×D) 765×1843×488(mm) 765×1843×488(mm) Weight 86kg 87.5kg
-
