FCE410H-1
(5)
-
Features
> Two way surround speaker cabinet specially developed for 3D audio cinema (medium/small size)
> It consists of aφ63mm 10″ MFLF unit and aφ44mm compression HF driver. MFLF unit uses symmetric magnetic design keeps balanced magnetic flux and lower bass distortion, and improves power consumption and damping factor. The new heat resistant voice coil and RDM cone offer elastic rich and powerful bass, clear vocal. HF driver uses T yoke with short circuit design to lower distortion, kapton diaphragm and Al voice coil to maximize the heat dissipation, and ensure bright tone and stable performance.
> Equipped with stand adjustable horizontally and vertically
> Steel frame for reliable suspension
> High sensitivity, excellent directivity and low distortion to reproduce 3D audio.
-
Specification

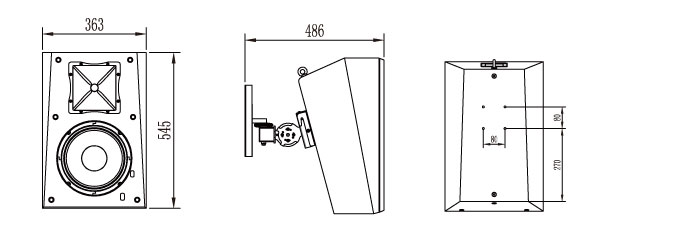

Model FCE410H-1 Type two way 3D audio cinema surround speaker cabinet Frequency(±3dB) 60Hz～20kHz Impedance 8Ω Rated power 300W Sensitivity (2.83v/1m) 96dB Max peak SPL 127dB Coverage (H*V)-6dB 120°x70° Crossover 2.5kHz Unit 10″x1+1.75″x 1 Dimension (WxHxD) 363x545x486mm Weight 17.5kg
-
